Temperature : max. 300 C

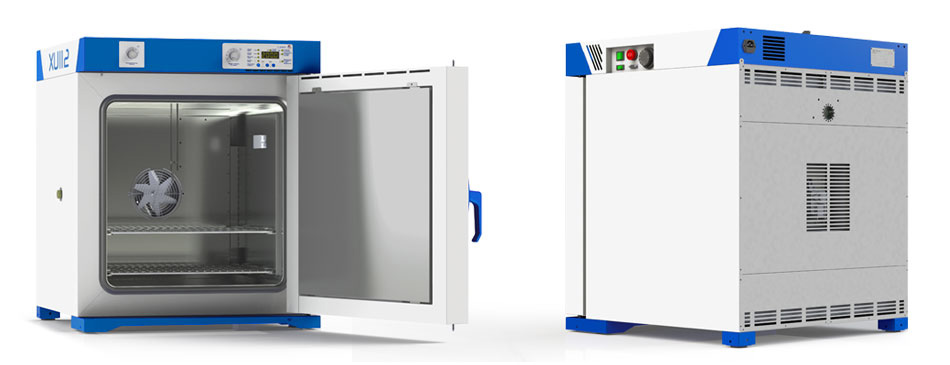

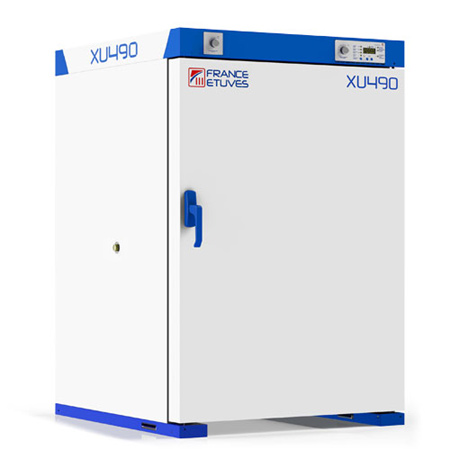

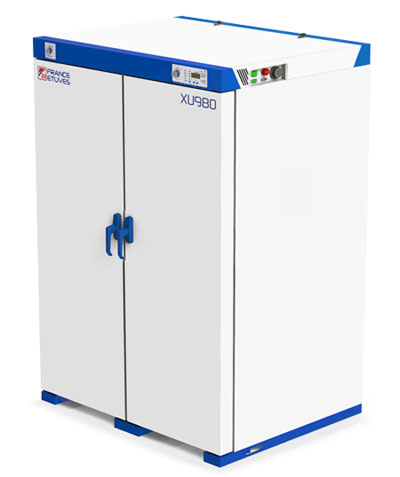

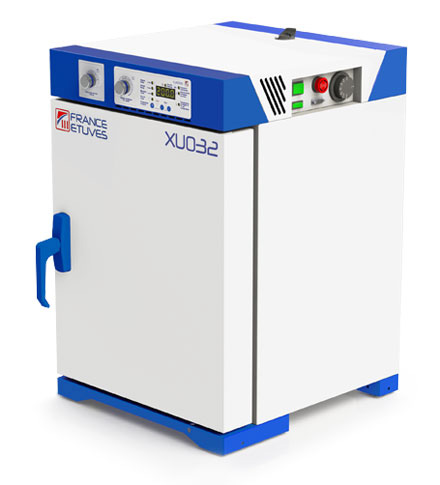

The FRANCE ETUVES XU universal ovens are suitable for all applications for drying, heating, heat preservation, sterilization, component aging, curing or any other thermal test in laboratories and in all sectors of industry.
There are 8 standard volumes : 32, 58, 112, 225, 343, 490, 686 and 980 liters.
The outer plates of the oven are made of electro galvanized steel coated with white and blue paints.
The inner casing is made of bright polished stainless steel. Stainless steel is particularly corrosion resistant, allowing you to process higher water content products.
The control panel is located on the top part of the oven for smallest space requirements.
ENTRY PORT 20 mm
An entry port is centered on the left side for passing cables or probes. A silicone cork allows you to block the entry port in case of non-use or to make airtight after passing cables.
The oven is equipped with an internal light activated by a switch located on the control panel.
The rounded corners of the inner casing make easier cleaning operations.
The thermal insulation by asbestos-free glass wool is optimized.
The outer casing is separated from the inner casing. There is no thermal bridge in order to ensure :
- low surface temperatures,
- low power consumption,
- rapid heating up.
Air tightness of the door is ensured by a long-lasting stabilized silicone seal. It is easily removable for an easy and quick cleaning.
AN EFFICIENT HEATING
Heating is ensured by sheathed stainless steel heating elements, ideally positioned in the air flow, allowing homogeneous heating up.
